CKB mBabel: Live Bilingual Captions for zh↔en Meetings

The problem

CKB is a global community where Chinese and English are the two main languages, and spoken communication across them is hard. Written communication is fine (AI translation handles documents well), but live discussion suffers. For this pain point we need good caption-style translation: English speech shows Chinese text, Chinese speech shows English text. Priorities: translation accuracy first, then low latency. Runs on cloud APIs or a MacBook Pro M4 Pro (24GB). (Don’t ask why it only has 24GB, that’s stupid of me when I bought the Macbook. :sweat_smile:)

Solution landscape

Approach Examples Quality ceiling Latency Cost per hour Hardware needed
End-to-end interpretation API Volcano LiveInterpret 2.0, Azure Live Interpreter LLM (SOTA) ~2.2s first text Priced as AI interpretation; you pay for the unused TTS branch Any laptop
ASR + MT cascade (this solution) Seed-ASR 2.0 + Volcano MT LLM LLM, glossary-enforced <1s interim, ~0.5s refined after sentence end ≈ ¥3.5/h ($0.49); ≈ ¥0.5/h ($0.07) on packs Any laptop
Meeting-platform built-ins Teams, Google Meet, Zoom translated captions NMT/LLM 2–4s $10–20/user/mo subscription; some platforms lack glossary support Any laptop
iFlytek 同传 LLM tier iFlytek simultaneous interpretation LLM 2–4s ¥40.8/h ($5.7), sold as ¥4080 ($570)/100h; no distinction between speakers, and the quality is poor. Any laptop
Google self-built Cloud STT Chirp + Cloud Translation LLM 2–4s ≈ $1.2/h (¥8.5); mainland China needs network workarounds Any laptop
Fully local models SenseVoice + Whisper turbo + TranslateGemma (MLX) Good, below cloud LLM 2–4s Free Apple Silicon with ≥24GB RAM (36GB+ will be better)

This solution

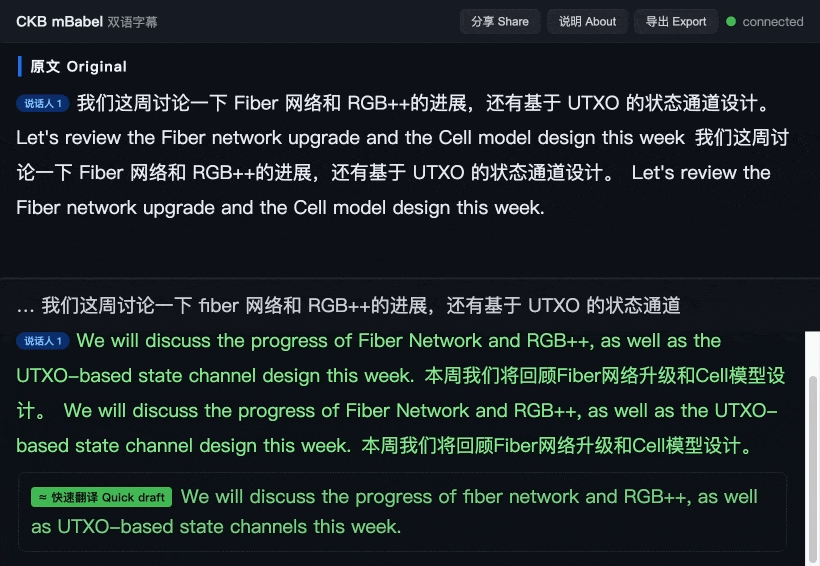

chrome-capture-2026-08-07 (1)

It’s ~12x cheaper than iFlytek’s LLM-tier simultaneous interpretation while running newer models, and ~2.5x cheaper than a self-assembled Google stack. One Volcengine speech console API key covers both recognition and translation:

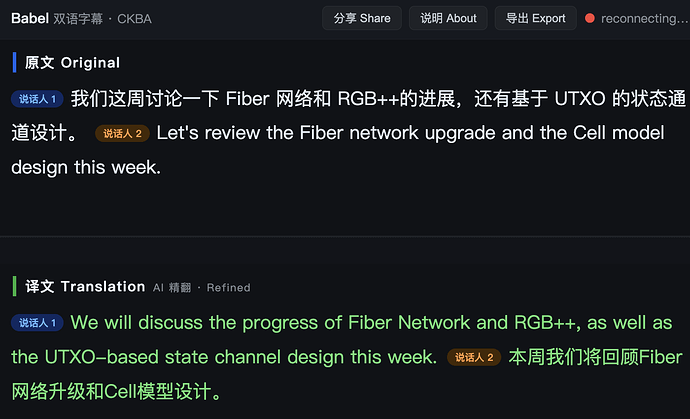

  • Dual-direction captions in a browser page: Chinese speech → English, English speech → Chinese, code-switching handled per sentence.

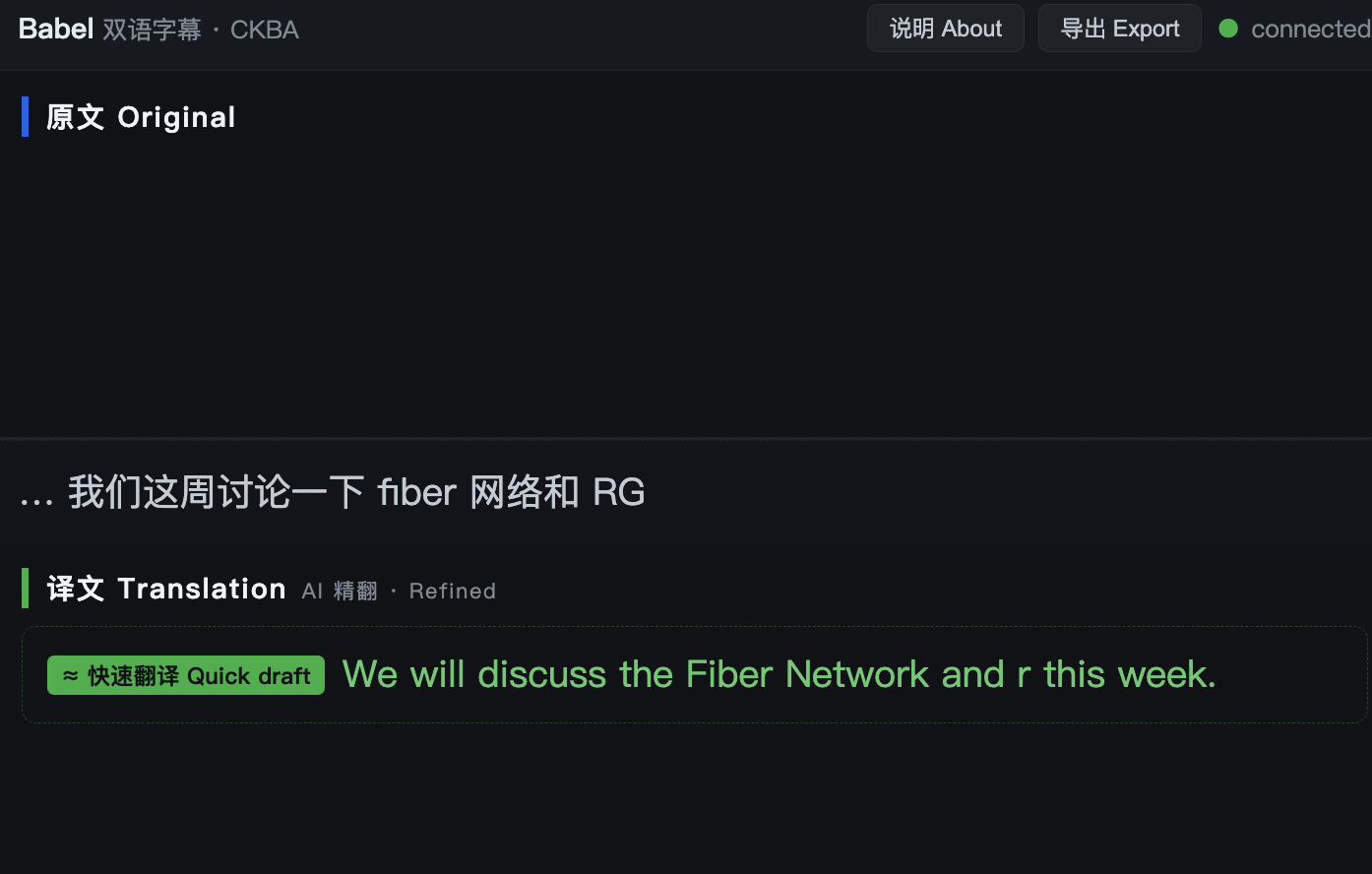

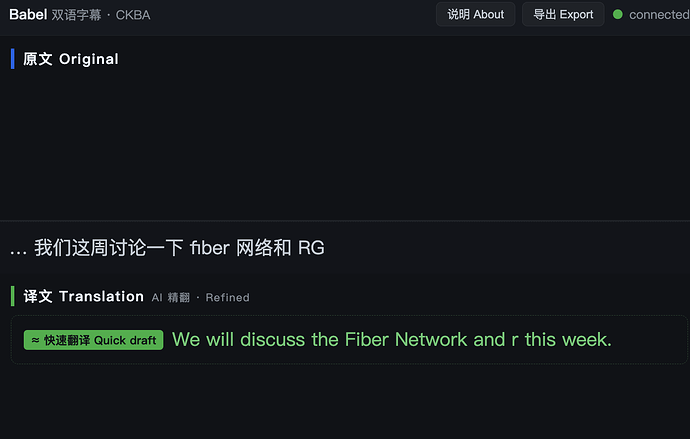

  • Draft translation follows live speech (“≈” means Quick draft); the refined translation replaces it ~0.5s after each sentence commits.

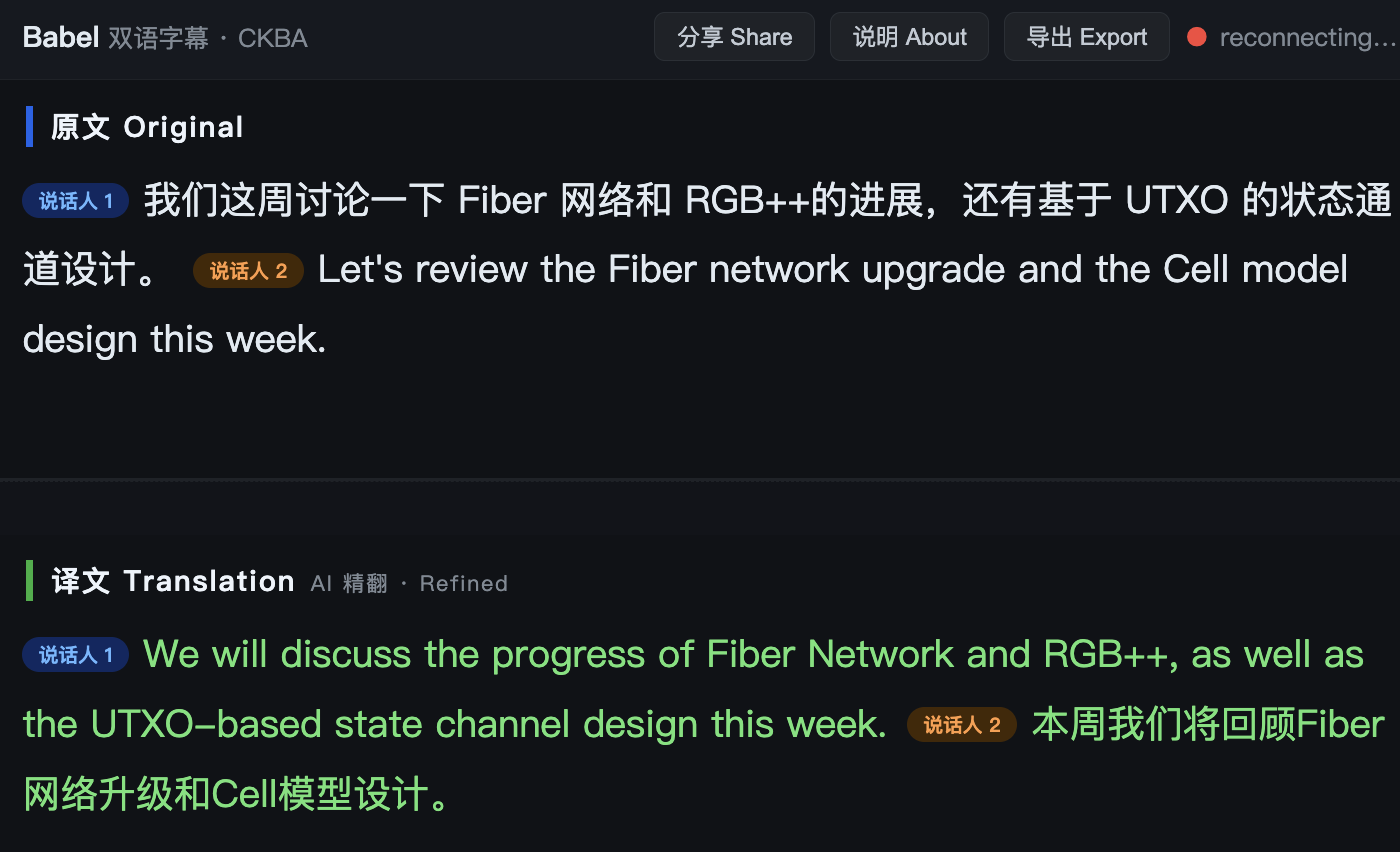

  • Server-side speaker clustering with colored speaker chips; a speaker change closes the current sentence.
  • Sentence accumulator with language-boundary split, silence watchdog, and filler filtering — real speech never shatters into fragments.

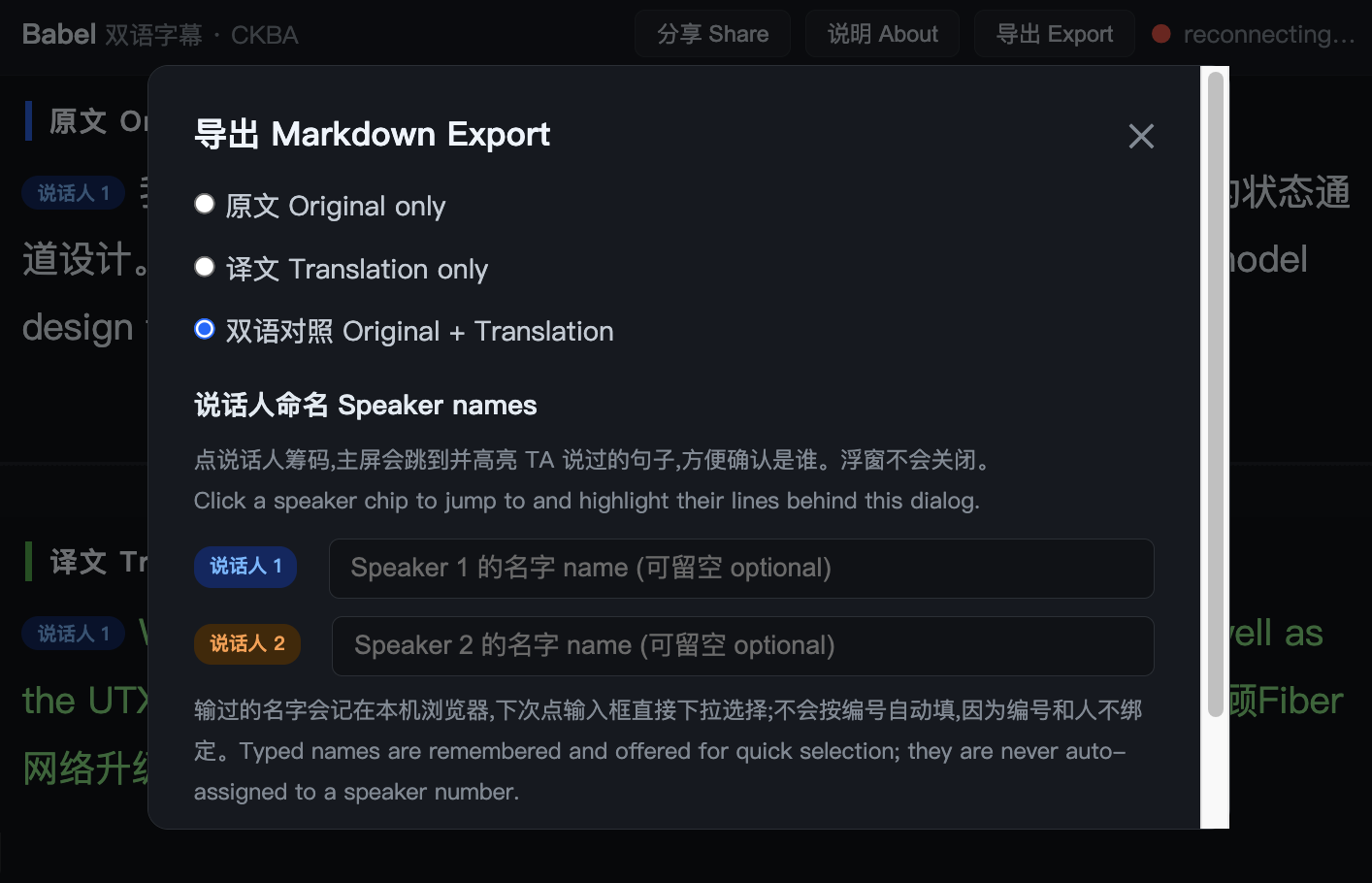

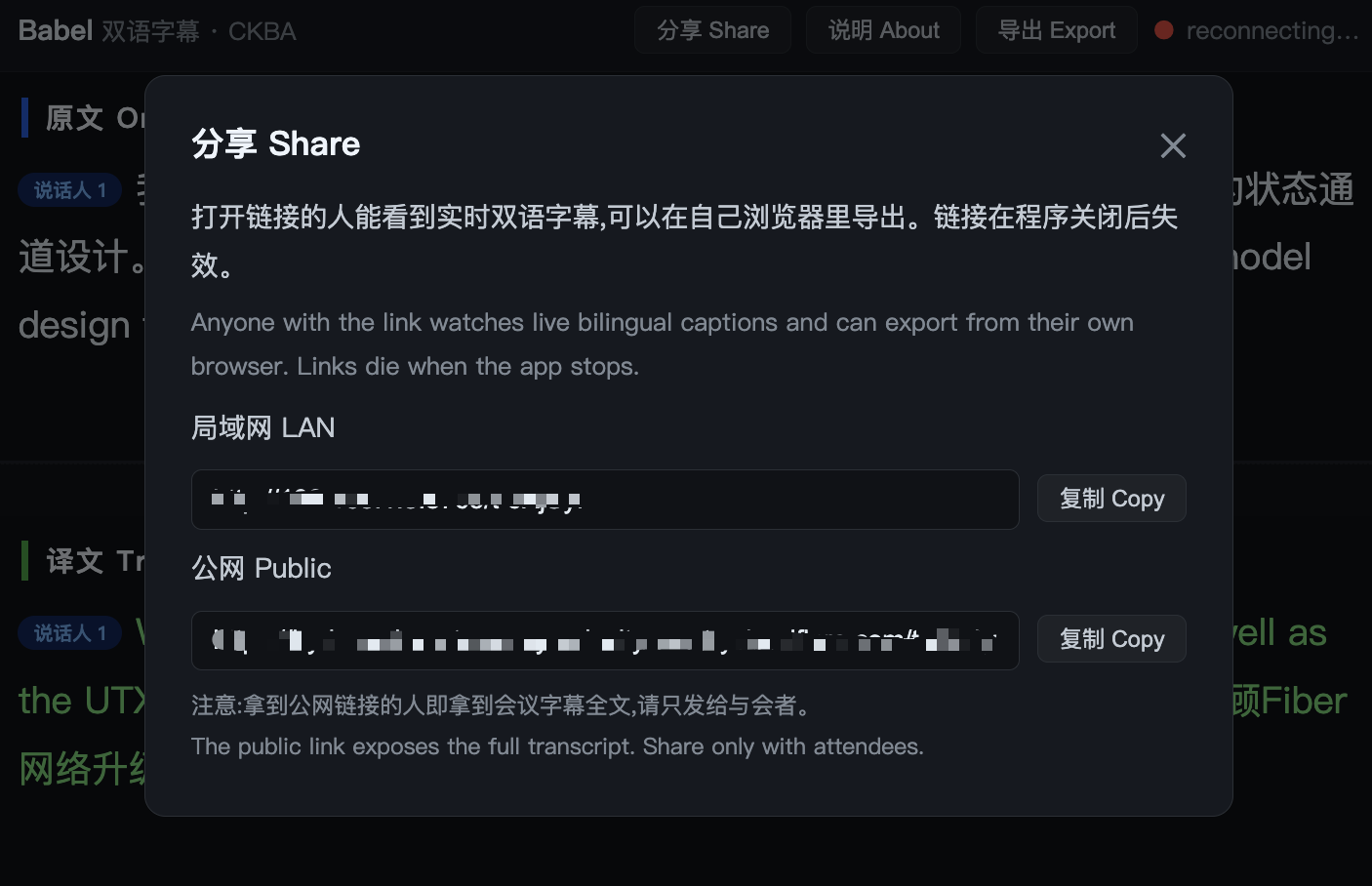

  • One-flag sharing (LAN link, public cloudflared quick-tunnel link), in-page Markdown export (original / translation / bilingual, speaker names remembered locally).
  • Domain adaptation without training: ASR hotwords (direct + self-learning boosting table), a client-side corrections map, a per-sentence translation glossary.
  • One-click launcher (Babel.command).

Repository layout

  • solution/ — the app: Seed-ASR WebSocket client, translation backends, sentence accumulator, caption UI.
  • hotwords/ — CKB-community hotword lists (mined from the past year of Nervos Talk posts and public Nervos Telegram group chats) plus the generated boosting table.
  • Babel.command — macOS double-click launcher (need to adjust Device number).

Feel free to try it out and give any suggestions, thank you!

9 Likes

Aug 8 updates:

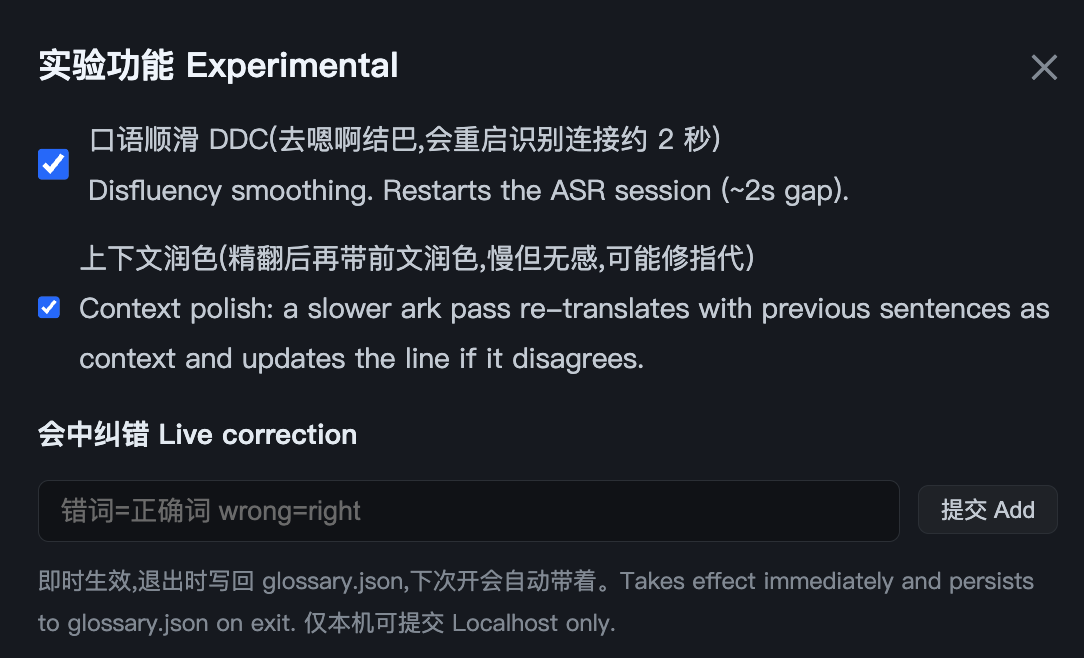

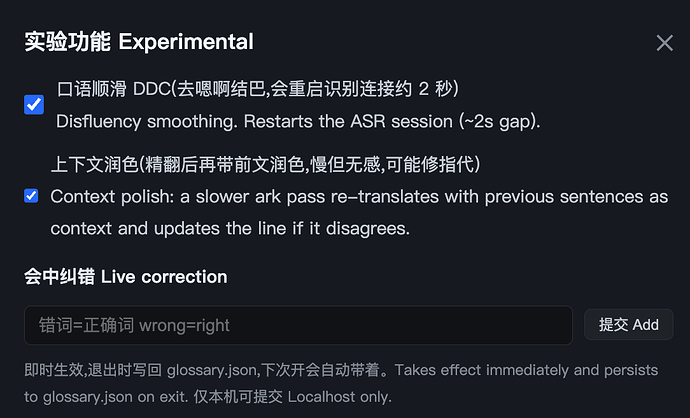

  • Live corrections (experimental, host only): fix a recurring mishearing mid-meeting from the Lab panel (错词=正确词); applies to all following sentences instantly and persists to the glossary on exit.
  • Context polish (experimental): an optional slower LLM pass re-translates each sentence with the previous sentences as context and updates the line in place when it disagrees — helps pronouns and ellipsis-heavy Chinese.
  • Viewer preferences: per-browser language view (bilingual / Chinese only / English only), four font sizes including a full-screen presentation mode; captions auto-follow only while you are at the bottom, with a “back to latest” button after scrolling up.
  • Export: [add] timestamped SRT.
  • Robust for long meetings: ASR auto-reconnects with backoff after network blips, translations retry and mark failures visibly, and the full transcript auto-saves to disk (JSONL + Markdown) regardless of the browser.

Aug 8 Updates 2:

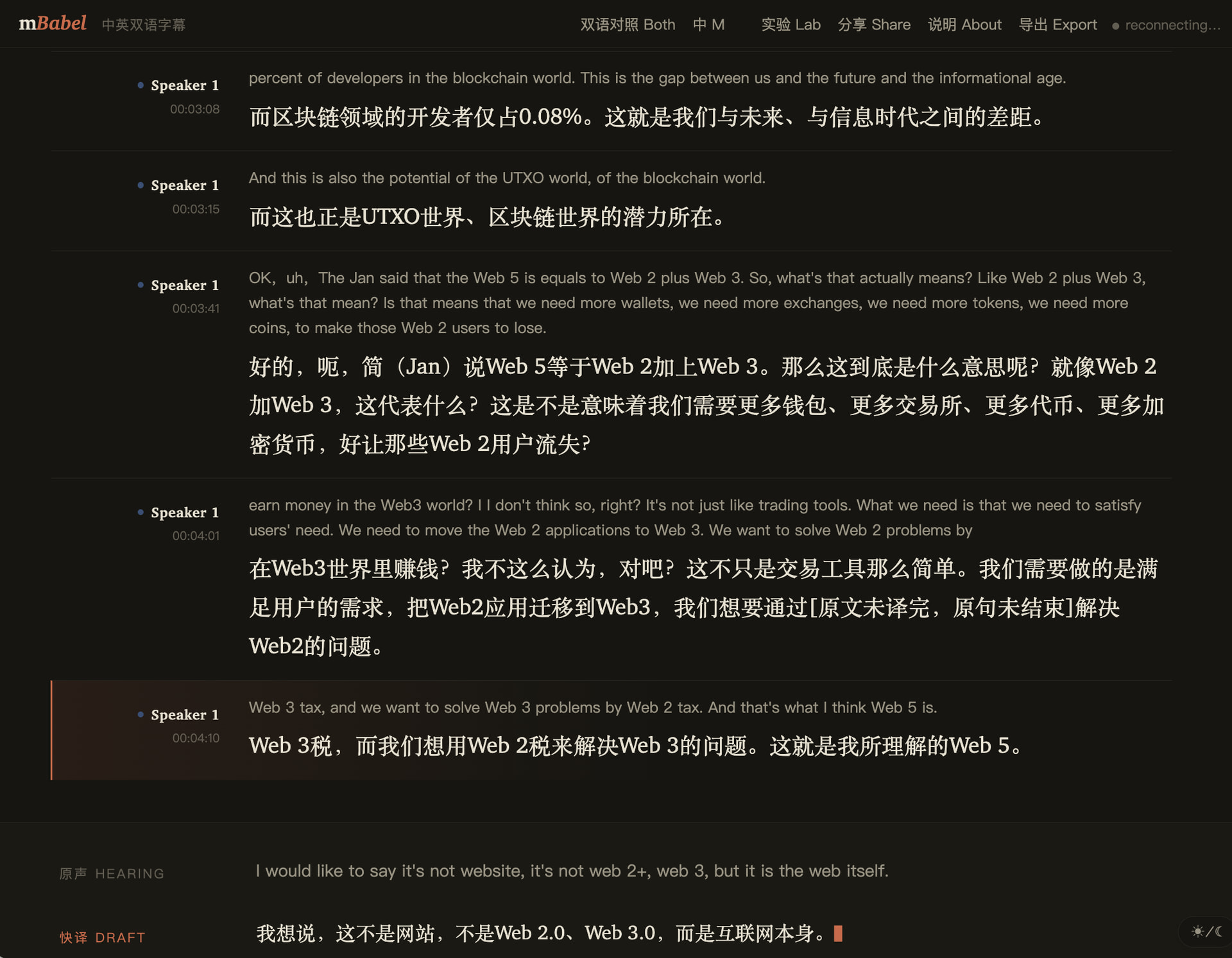

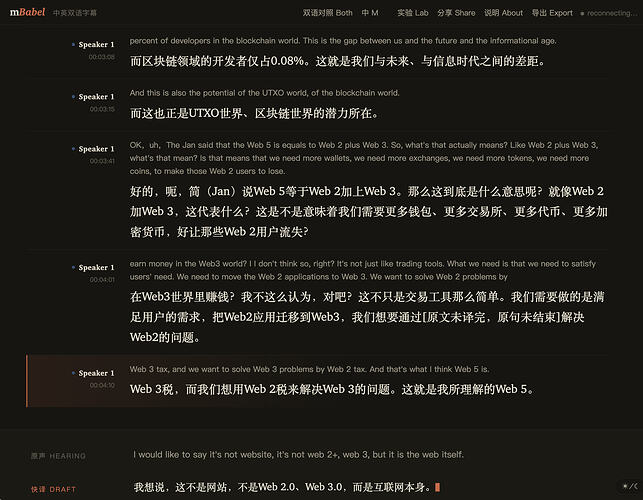

  1. Redesigned UI: a single bilingual transcript (speaker + time in the margin, original above, translation below), light/dark themes, per-viewer language view and font sizes with a presentation mode.

  2. Draft-first pipeline: the live draft is promoted to the caption the moment a sentence ends, then silently replaced by a context-aware refined pass.

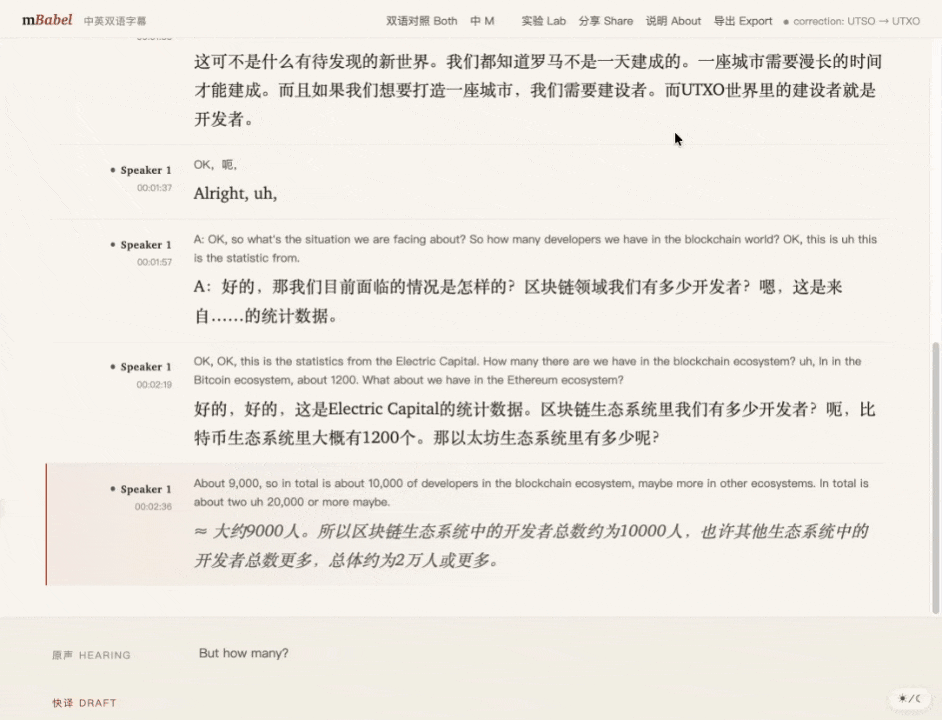

    chrome-capture-2026-08-08 (1)

  3. Rate-limit elimination: diagnosed Volcano’s QPM throttling (misreported as HTTP 500), rebudgeted all quota to the live draft, added classified backoff and quiet backfill — no more failed-translation lines.

  4. Cheaper refined translations (doubao-seed mini).

  5. Robustness: mishearing markers for language-misidentified sentences, reasoning-leak guard, slow-viewer auto-reconnect.

  6. Live demo (no setup): CKB mBabel · Live Demo

6 Likes

Aug 9 updates:

  • The clunkiest part of the original audio setting (create a Multi-Output Device in Audio MIDI Setup, point the meeting app at it, adjust a device number in the launcher) is removed. The only remaining prerequisite is brew install blackhole-2ch.

  • After a network blip, the client replays the last seconds of audio and merges the frozen half-sentence, so a reconnect repeats a word at worst instead of dropping one.

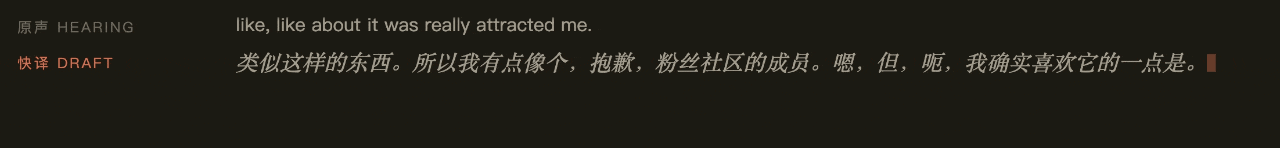

  • The quick-draft strip optimized: the stable prefix stays put in full ink, only the still-revising tail is gray italic, so your eyes stop chasing re-flowing text.
    chrome-capture-2026-08-09

  • Other optimizations.

2 Likes

50.000 characters per user per month are free.
